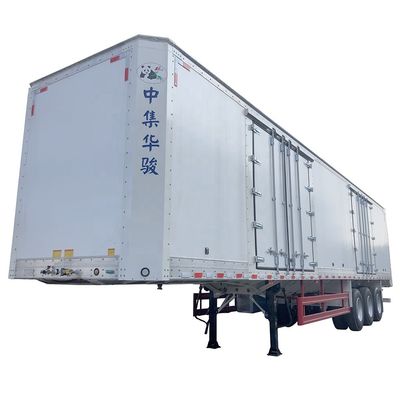

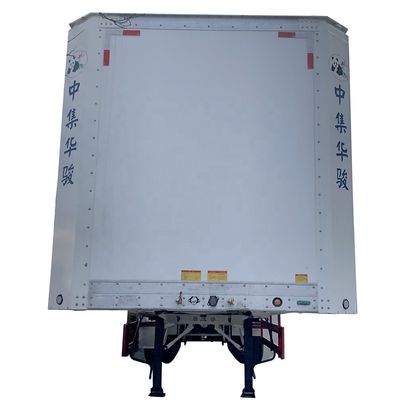

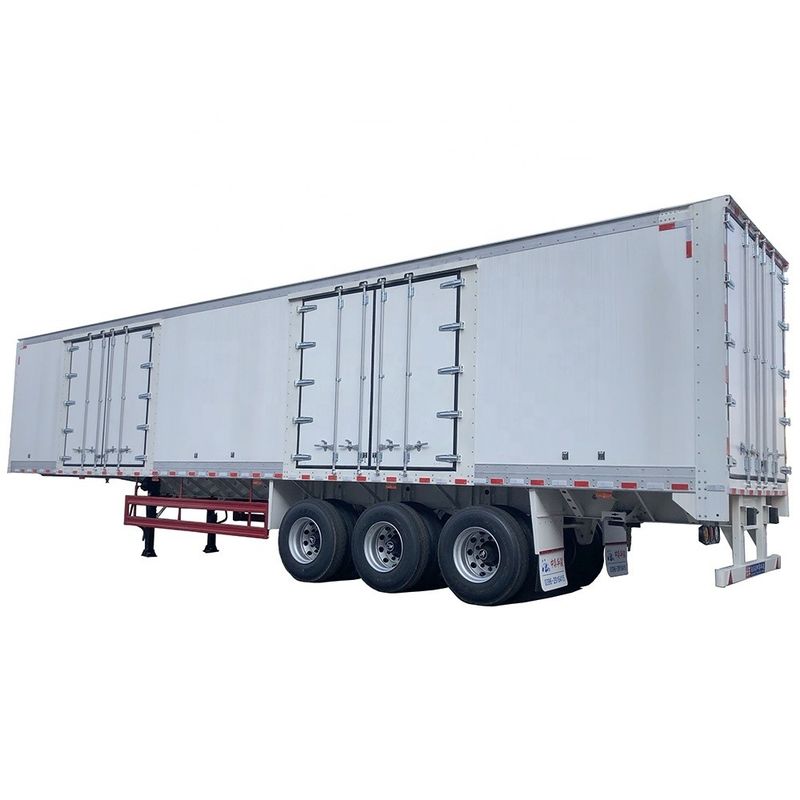

Design CIMC HUAJUN 3 Axles Aluminium Alloy Cargo Box Semi Trailer for 50 Ton Capacity

Design CIMC HUAJUN 3 Axles Aluminium Alloy Cargo Box Semi Trailer for 50 Ton Capacity

Product Details:

Place of Origin: Henan, China
Brand Name: CIMC HUAJUN
Certification: CE

Payment & Shipping Terms:

Price: $11,500.00 - $16,700.00/units
Packaging Details: CIMC HUAJUN 3 Axles Aluminium Alloy Material Cargo Box Semi Trailer with Composite Board for Transporting Dry Goods<br>1. Naked or waxed.<br>2. One unit was shipped separately.
Supply Ability: 1200 Unit/Units per Month 3 axles box semi trailer
Get Best Price Contact Now

Detail Information
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 13750*2550*3850mm
Max Payload: 60T Product Name: 3 Axles Box Semi Trailer
Function: Transporting Dry Goods Color: Customers Optional
Axle: 13 Ton Fuwa Brand Tire: 12R22.5
Capacity: 50 Ton Tractor: Kinds
Main Beam: T700/Q345 Steel Suspension System: Mechanical Supension
Main Beam Height: 500 Mm OE NO.: HJGMCK21036
Port: SHANGHAI/QINGDAO/TIANJIN

Product Description

Click the follow picture to view more about our company
Design CIMC HUAJUN 3 Axles Aluminium Alloy Cargo Box Semi Trailer for 50 Ton Capacity 0
Design CIMC HUAJUN 3 Axles Aluminium Alloy Cargo Box Semi Trailer for 50 Ton Capacity 2
Design CIMC HUAJUN 3 Axles Aluminium Alloy Cargo Box Semi Trailer for 50 Ton Capacity 3
Design CIMC HUAJUN 3 Axles Aluminium Alloy Cargo Box Semi Trailer for 50 Ton Capacity 4
CIMC HUAJUN 3 Axles Aluminium Alloy Material Cargo Box Semi Trailer with Composite Board for Transporting Dry Goods
Item
Specification
Product name
3 axles box semi trailer
Size
13750*2550*4000mm.
Body Sheet
Side wall thickness: 2mm, floor thickness: 3mm;
Body material: aluminium alloy with composite board.
Chassis
Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.
Axle
20T FUWA brand axle

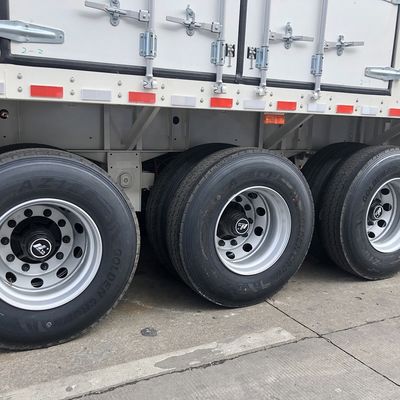

Tire
12R22.5
Rim
9.0-22.5
Suspension
3 axles CIMC HUAJUN reinforced type
Lead spring
CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness.
Braking system
2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system
24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors.
Shot blasting
Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed.
Landing gear
28T, two side operation.
Chamber
Double type
King pin
(2') 50# or (3.5') 90#
Cylinder
Side tipper 120
Spare tire carrier
CIMC HUAJUN standard
Tool box
CIMC HUAJUN standard
Color
According to customers' requirements and RAL color code.
--We are very strict about choosing raw materials, this is very important for the final products.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
Design CIMC HUAJUN 3 Axles Aluminium Alloy Cargo Box Semi Trailer for 50 Ton Capacity 5
Design CIMC HUAJUN 3 Axles Aluminium Alloy Cargo Box Semi Trailer for 50 Ton Capacity 6
Design CIMC HUAJUN 3 Axles Aluminium Alloy Cargo Box Semi Trailer for 50 Ton Capacity 7
Safe Bumper with full protection

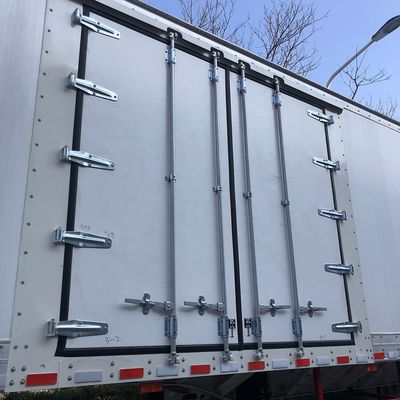

Opening with two doors at side

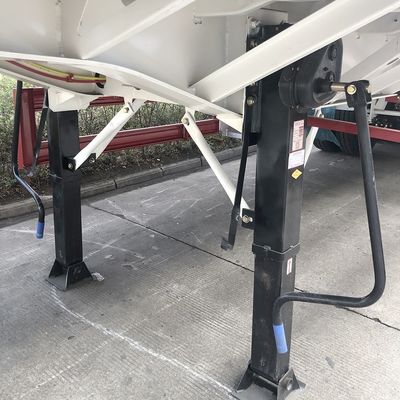

Stable & heavy landing gear
