11.00r20 Tires and Standard 28Ton Landing Gear Side Tipper Semi-Trailer by CIMC HUAJUN
Product Details:
| Place of Origin: | China |
| Brand Name: | CIMC |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $18,600.00/units >=1 units |
|---|---|
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Max Payload: | 60T |
| Product Name: | Tipper Semi Trailer | Suspension: | Air Suspension |
| Axle: | 13/16 Ton Fuwa/BPW/CIMC | Function: | Transport Sand |
| Tire: | 11.00r20 12r22.5 315 385 | Landing Gear: | Standard 28Ton |
| Color: | Customers Optional | King Pin: | 90#/50# |
| Usage: | Heavy Equipment Machinery Transport | Brake System: | Double Line Air Brakes |
| Port: | Qingdao | ||
Product Description
Product Description
Click the follow picture to view more about our company

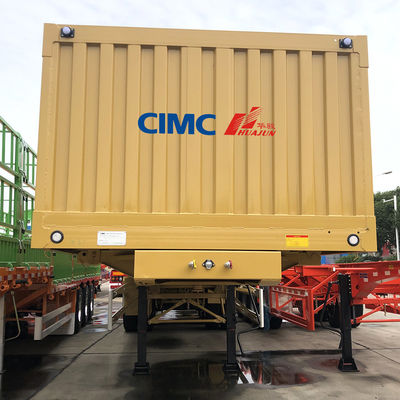

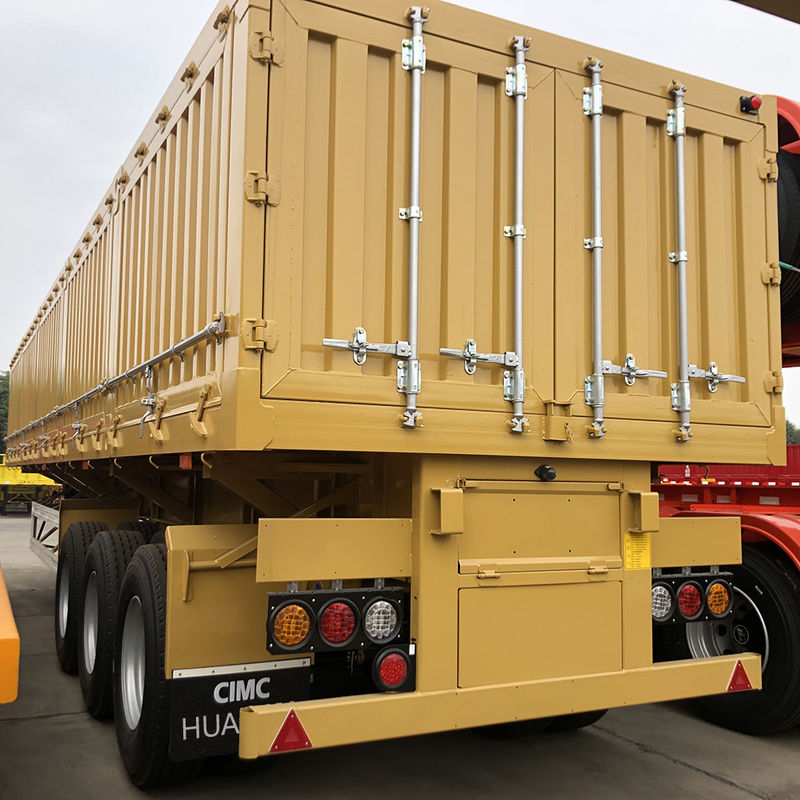

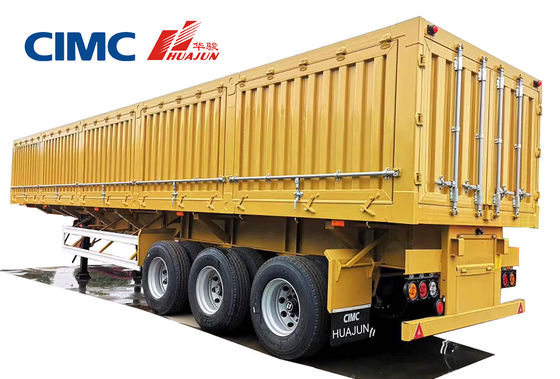

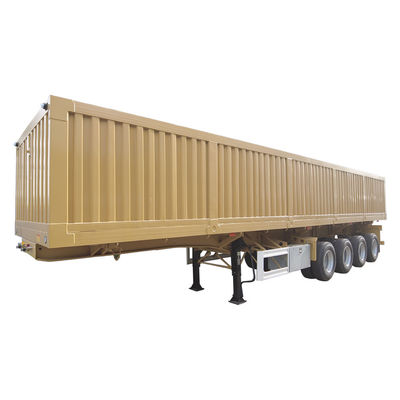

CIMC HUAJUN side tipper semi-trailer
Item | Specification |
Product name | CIMC HUAJUN side tipper semi-trailer |
Size | 12000*2600*2880mm. 50CBM. |
Body Sheet | Side wall thickness: 8mm, floor thickness: 8mm; Body material: wear resistant steel. |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes. |
Axle | 20T FUWA brand axle |
Tire | 12.00R20 |
Rim | 8.5-20 |
Suspension | 4 axles CIMC HUAJUN reinforced type |
Lead spring | CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness. |
Braking system | 2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters. |
Electrical system | 24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors. |
Shot blasting | Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed. |
Landing gear | 28T, two side operation. |
Chamber | Double type |
King pin | (2') 50# or (3.5') 90# |
Cylinder | Side tipper 120 |
Spare tire carrier | CIMC HUAJUN standard |
Tool box | CIMC HUAJUN standard |
Color | According to customers' requirements and RAL color code. |
--We are very strict about choosing raw materials, this is very important for the final products.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
Certifications
Our Honor：
--China Well-Known Trademark
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
Our Certifications:
--CE
--CCC
--ISO
--TUV
--CCC
--ISO
--TUV
--SGS
...
...
Packing&Shipping
补充标题
Waxed Packing by RO-RO or Vessel
1. One unit was shipped separately；
2. Two or units were packed as one set ;
Shipping by Containers
1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
Packing Case for Reference
Factory History
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
Our Customers
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as the leading brand over the world through years' unremitting efforts.
By now, our trailers were shipped to more than 60 countries and area. Such as: The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory more than 15 years.
Write to customers:
Appreciated for each customer's trust. We will never forget the mission and continue to provide reliable trailers.
Our Supplier
Through the cooperation with famous brand suppliers, not only to ensure the quality of products, but also to sure the timeliness and reliability of after-sales service.
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
Oversea Sales Team
Oversea Engineer Team
Want to Know more details about this product
