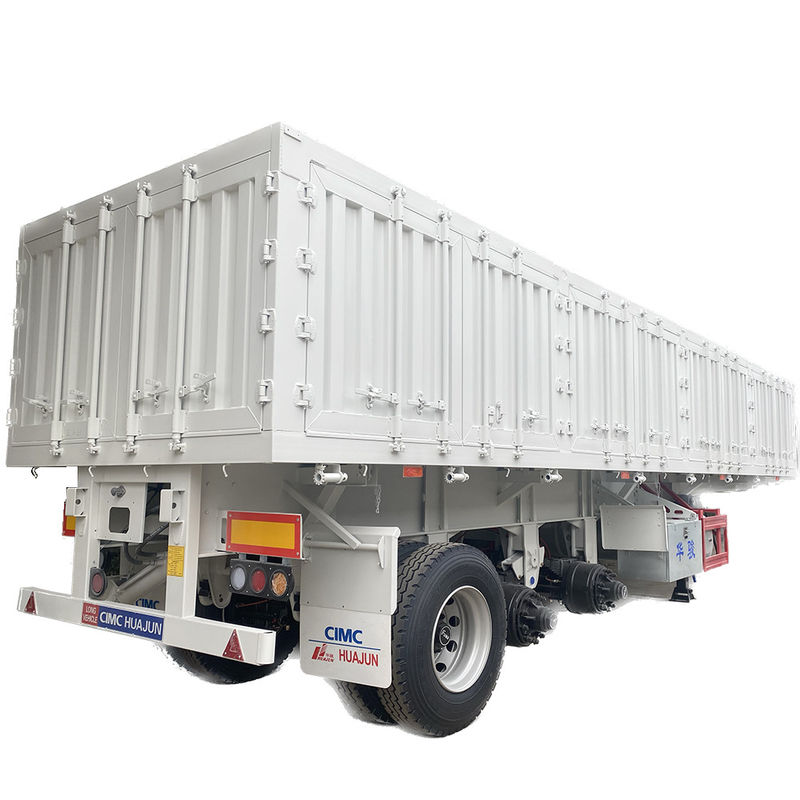

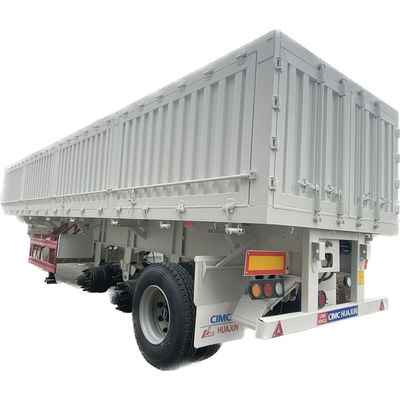

Mechanical Suspension 3 Axle Side Tipping Semi Trailer for Smooth and Stable Transport
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | CIMC |
Payment & Shipping Terms:
| Price: | $10,000.00/units 1-8 units |
|---|---|
| Packaging Details: | 35 cubic 3 axle side tipping semi trailer<br>1. Nude packing with waxed the whole trailer;<br>2. 2 or 3 units were packed as one set; |
| Supply Ability: | 2000 Unit/Units per Month transport trailer |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 10740*2500*2980 |
| Max Payload: | 60T | Product Name: | Dumper Truck Trailer |
| Axle: | 13/16 Ton Fuwa/BPW/CIMC | Function: | Cargo Transport |
| Suspension: | Mechanical Suspension Air Suspension | Color: | Customers Optional |
| Landing Gear: | Standard 28Ton | King Pin: | 2"(50mm)or3.5"(90mm) |
| Loading Capacity: | 40T~ 60T | Brake System: | Dual Line Braking System |
| Application: | Cargo Loading | Port: | SHANGHAI/QINGDAO/TIANJIN |
Product Description
Product Description
Item | Specification |
Product name | 3 axle side tipping semi trailer |
Size | 10740*2600*3100mm. |
Payload | 35T |
Chassis | Height:500; flange plate:14/16; web plate:8 |
Axle | 13T FUWA brand axle |
Tire | 12R22.5-16PR |
Rim | 9.0*22.5 |

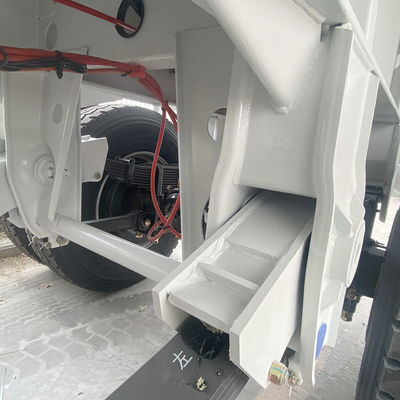

Suspension | 3 axles CIMC HUAJUN reinforced type |
Lead spring | CIMC HUAJUN reinforced type |

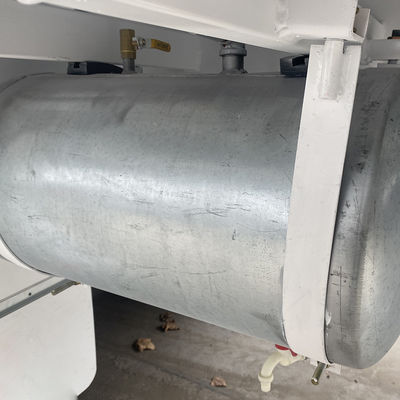

Braking system | 2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters. |
Electrical system | 24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors. |
Shot blasting | Primer coat, top coat after sand blasting. Color per customer’s requirement. |

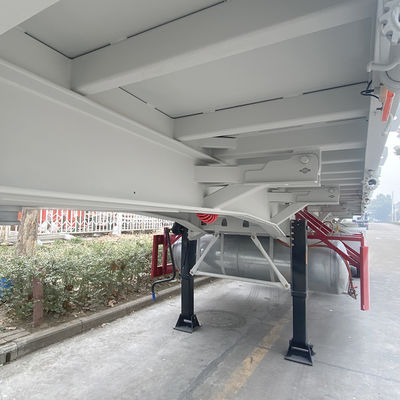

Landing gear | 28T, one side operation. |
Chamber | Double type |
King pin | (2') 50# or (3.5') 90# |
Cylinder | Side tipper 130 |
Spare tire carrier | 1 set |
Tool box | 1 set |
Color | According to customers' requirements and RAL color code. |
--We are very strict about choosing raw materials, this is very important for the final products.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
