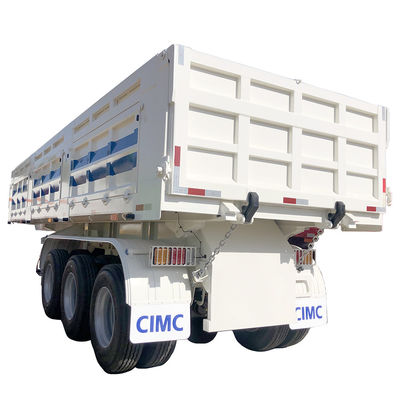

Rear Dump Trailer 3 Axles Tipper Semi Truck Tipping Trailer with 70 ton Max Payload
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | CIMC HUAJUN |
Payment & Shipping Terms:
| Price: | $12,800.00 - $18,500.00/units |
|---|---|
| Packaging Details: | The whole trailer was waxed for sea shipping.<br>One unit was shipped separately. |
| Supply Ability: | 3000 Unit/Units per Month |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 900*3050*3000mm |
| Max Payload: | 70 Ton | Product Name: | Tipper/Dumper Semi Trailer Rear Tipper Semi Trailer |
| Axle: | 13/16 Ton Fuwa/BPW/CIMC | Function: | Sand And Stone |
| Suspension: | Mechanical Suspension | Tire: | 12R22.5 |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | Landing Gear: | JOST Brand Two-speed |
| Color: | Customers Optional | Main Beam: | 500mm Height Q345B |
| Brake System: | Dual Line Braking System | Port: | SHANGHAI/QINGDAO/TIANJIN |
Product Description
Product Description
New Hydraulic Rear Dump trailer 3 Axles Tipper Semi Truck Tipping Trailer For Sale
Item | Specification |
Product name | Rear Tipper Semi Trailer Transport Scattered Goods Coal Core building materials |
Size | 9000*3050*3000mm |
Body Sheet | Side wall thickness: 8mm, floor thickness: 8mm; Body material: wear resistant steel. |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes. |
Axle | 20T FUWA brand axle |

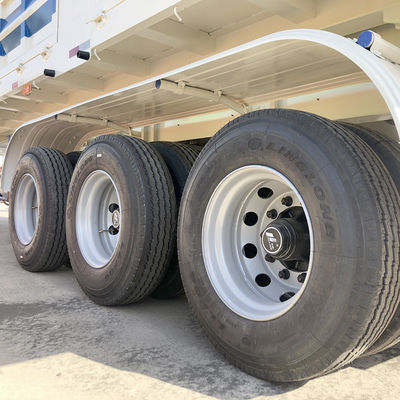

Tire | 12.00R20 |
Rim | 8.5-20 |
Suspension | CIMC HUAJUN reinforced type |
Lead spring | CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness. |
Braking system | 2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters. |
Electrical system | 24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors. |
Shot blasting | Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed. |

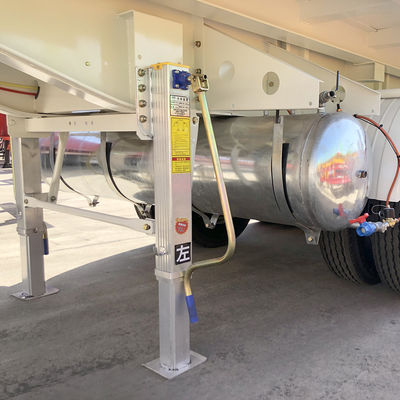

Landing gear | 28T, two side operation. |
Chamber | Double type |
King pin | (2') 50# or (3.5') 90# |

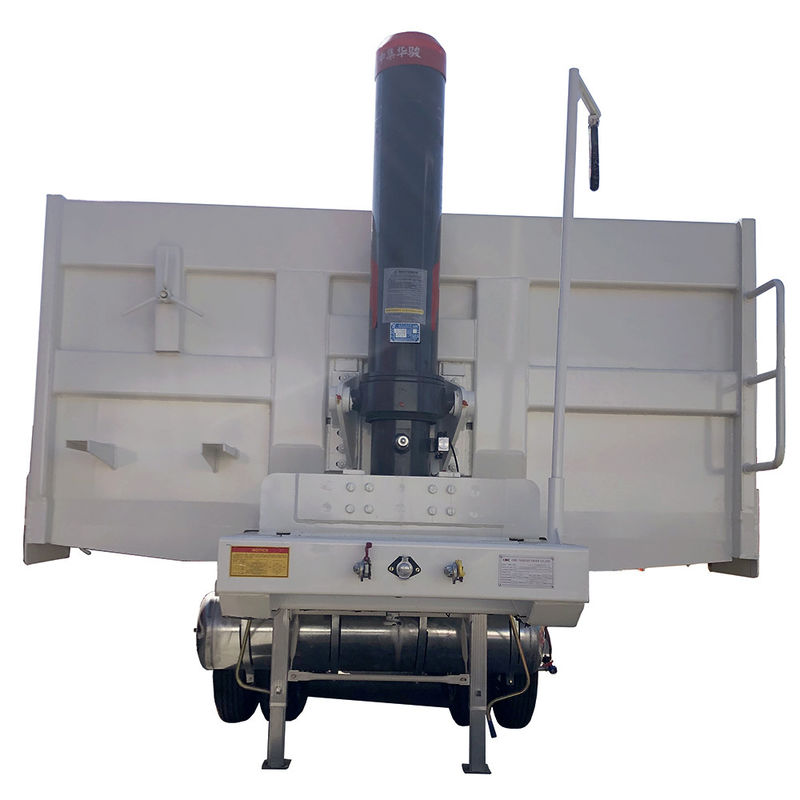

Cylinder | Side tipper 120 |
Spare tire carrier | CIMC HUAJUN standard |
Tool box | CIMC HUAJUN standard |
Color | According to customers' requirements and RAL color code. |
--We are very strict about choosing raw materials, this is very important for the final products.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
Certifications
Our Honor：
--China Well-Known Trademark
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
Our Certifications:
--CE
--CCC
--ISO
--TUV
--CCC
--ISO
--TUV
--SGS
...
...
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
Company Profile
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
Our Customers
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as the leading brand over the world through years' unremitting efforts.
By now, our trailers were shipped to more than 60 countries and area. Such as: The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory more than 15 years.
Write to customers:
Appreciated for each customer's trust. We will never forget the mission and continue to provide reliable trailers.
FAQ
Q1. Are you a manufacturer?
A: Yes, we have been in special vehicle manufacturing and marketing for over 20 years.
Q2. What markets do your vehicle export to?
A: Europe, North & South America, South-East Asia, Africa, Oceania, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
A: Please let us know the your purpose, road condition, cargo type, tons of your cargo, dimensions of trailer, quantity etc. The more info you provide, the more accurate model and price you will get.
Q4. Is it available to print our own brand on the vehicle?
A: Totally acceptable as you wish.
Q5. How can I get the price of your vehicle?
A: You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
