Long Distance Transportation 4 Axles Heavy Duty Flatbed Semi Trailer Truck and 12 Twist Locks
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | CIMC HUAJUN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 units |
|---|---|
| Price: | $11,500.00/units 10-19 units |
| Packaging Details: | 4 Axles Heavy Duty Flatbed Semi Trailer Truck<br>3 units packed as one set, to make sure MIn. packing size, ship by roro, <br>Or rear part cut, 2 units packed as one set, ship by 40HQ container |
| Supply Ability: | 3000 Unit/Units per Month |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 13680*2500*1450mm |
| Max Payload: | 60Ton | Axle: | 13 Ton Fuwa Brand |
| Tire: | 12R22.5, Optional | Suspension: | Leaf Spring Suspension |
| Landing Gear: | JOST Brand Two-speed | Twist Locks: | 12sets |
| Product Name: | Flatbed Container Semi Trailer | Function: | Transport 20ft 40ft Container |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | Color: | Custom's Requirement |
| Application: | Long Distance Transportation | Port: | Qingdao Shanghai |
Product Description
Product Description
Flatbed Semi Trailer Truck
CIMC HUAJUN has more than 60 years experience in vehicle manufacture. With first-class product R&D, producing, inspecting and marketing system, CIMC HUAJUN takes the responsibility to pursue the excellence, lean, profession and the practical. After 69 years unremitting efforts make HUAJUN" brand as well-known brand over the world.
CIMC HUAJUN Flatbed Container Truck Semi Trailer is specially used for the transportation of various containers, and it can also use its platform to transport ordinary bulk cargo. It has sufficient strength and is mainly used in transportation systems such as ships, ports, routes, highways, transfer stations, bridges, tunnels and other transportation systems.
Item | 20FT flatbed trailer | 40FT flatbed trailer | 45FT flatbed trailer | |||
Size | 8500*2500mm | 13680*2500mm | 12380*2500mm | |||
Capacity | 20-60 Tons | 30-80 Tons | 30-80 Tons | |||
Application | 1*20FT container | 1*40FT/2*20FT/1*20FT container | 1*45FT/1*40FT/2*20FT/1*20FT container | |||
Main Beam | Q345/T700 | |||||
Top/Bottom flange plate/Web plate | 12/14/6mm | 16/18/10mm | 16/18/10mm | |||
Height | 500mm | |||||
Floor Board | 3mm checkered plate | |||||
Suspension | Mechanical/ Air suspension, optional | |||||
Brake system | Dual lines air brake system, Palm type coupling. Brake valve Brand: China famous. Chamber: T30 on front Axle, T30/30 on rear axle. | |||||
Kingpin | 50#(2“) or 90#(3.5"), optional | |||||
Landing Gear | JOST brand | |||||
Twist Lock | 4 sets | 8/12 sets | 8/12 sets | |||
Electrical system | 24V ISO1185 standard, modular harness. Lamp: LED lamp. Brand: China famous. | |||||
Painting | Primer coat, top coat after sand blasting. Color per customer’s requirement | |||||
If you want know more details, please contact directly. | ||||||
Production Process

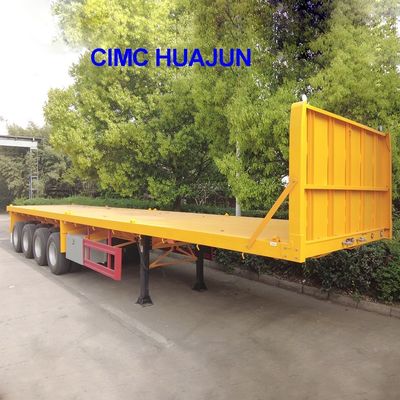

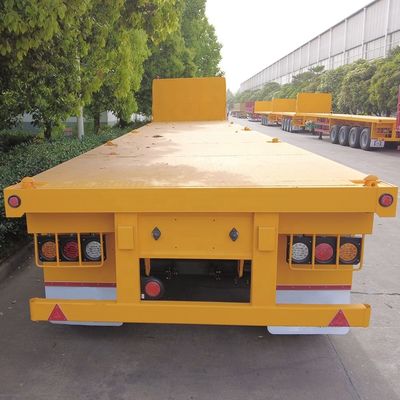

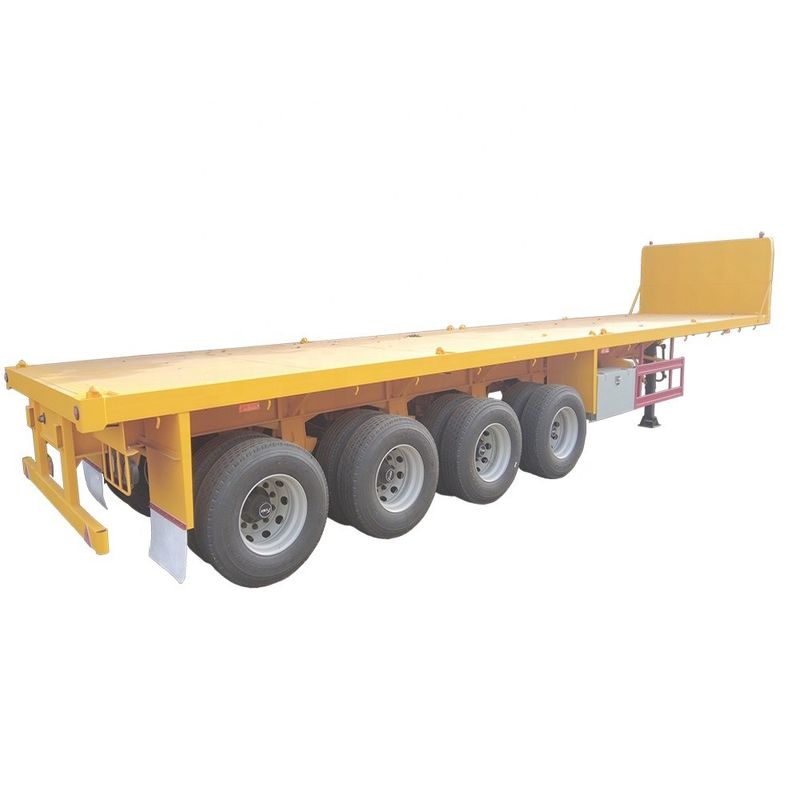

Product Display
2/3/4/5 axles flatbed semi trailer can loading range from 20 tons to 100 tons.
This kind of flat semi-trailer can be equipped with removable breast boards, columns, number of locks, etc. according to customer requirements.
The girder adopts submerged arc welding, the whole vehicle shot blasting and derusting, and the bottom plate is 3mm checked plate.
The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
Our Trailer factory can also support other customized flatbed semi-trailers, flatbed semi-trailer train, and lumber flatbed semi-trailers.
Packing & Delivery
best packing solution, 3 units packed as one set, to make sure MIn. packing size, ship by roro,
or rear part cut, 2 units packed as one set, ship by 40HQ container
Why Choose Us?
Leading brand trailer factory, to make the right trailer for you
1.Profession
More than 60 years experience in vehicle manufacture, consistent pursuit of quality, bring us famous brand in Chinese vehicle industry.
2.Actual strength
With annual output of 50000 units trailer, Top 500 in Chinese mechanical industry, top 100 in Chinese automobile industry, witness our great strength.
3.R&D
Set up a post-doctoral research station, Take part in drawing up national and industrial standards,leading in new trend of
technical design, raw material utilization, and equipment & craft, developing on innovation, always been imitated, but never been exceeded.
4.Service
Create CIMC HUAJUN unique heart-pleasing service, Offer the tailored solution for the customer, and make sure the quality and create more value for customer.
5.Adaptability
Always developed under the concept of safety, efficient, pro-environment, intelligent adaptability. etc.widely master kinds of road condition, kinds of loading resources, kinds of transport environment at home and abroad, reasonably optimize the structure, offer quality and tailored products for professional customers, really embody our high adaptability.
Company Profie
FAQ
Q1. Are you a manufacturer?
A: Yes, we have been in special vehicle manufacturing and marketing for over 20 years.
Q2. What markets do your vehicle export to?
A: Europe, North & South America, South-East Asia, Africa, Oceania, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
A: Please let us know the your purpose, road condition, cargo type, tons of your cargo, dimensions of trailer, quantity etc. The more info you provide, the more accurate model and price you will get.
Q4. Is it available to print our own brand on the vehicle?
A: Totally acceptable as you wish.
Q5. How can I get the price of your vehicle?
A: You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Want to Know more details about this product
