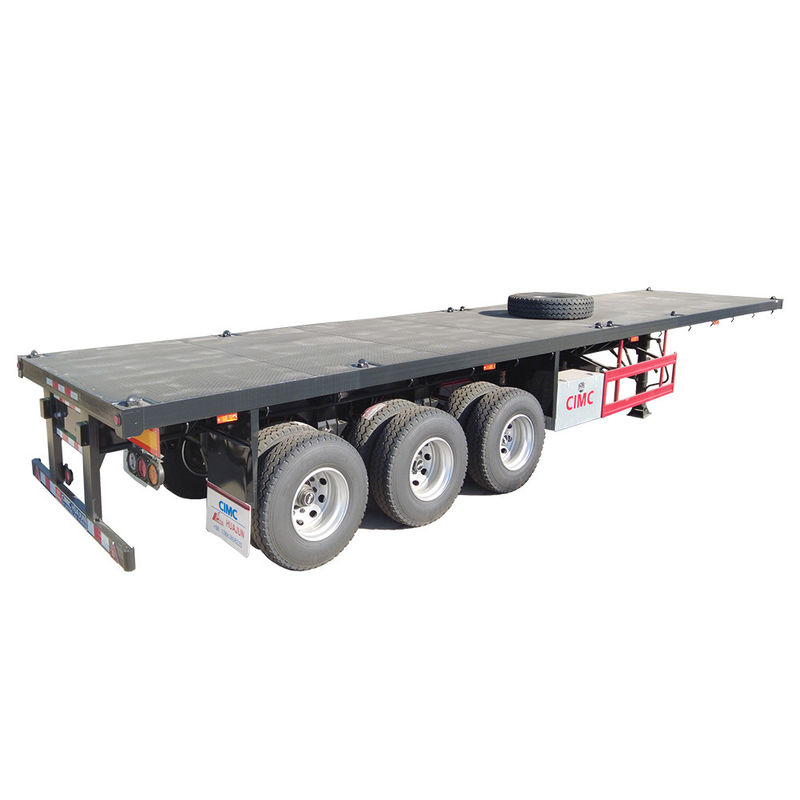

Leaf Spring Suspension 40ft Straight Beam Container Transportation Semi-Trailer with 12 Twist Locks
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | CIMC HUAJUN |
| Certification: | TUV,ISO 9001-2000, ISO 9002, TS 16949, CCC |
Payment & Shipping Terms:
| Price: | $9,000.00/units |
|---|---|
| Packaging Details: | single piece, two or three in one bundle. |
| Supply Ability: | 3000 Unit/Units per Month |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12380 * 2500 * 1550mm |
| Max Payload: | 40Ton | Axle: | HUJUN, FUWA, BPW |
| Tire: | 12R22.5, Optional | Suspension: | Leaf Spring Suspension |
| Landing Gear: | 28T, 19', One Side Operation | Twist Locks: | 12sets |
| OE NO.: | CIMC Huajun | Port: | China Port |
Product Description
Product Description
Type | 40ft tri-axle flatbed semi-trailer |
Size | 12380 * 2500 * 1550 |
Tare weight | 1,0100kg |
Max. loading | 5,0000kg |
Checker plate | 3mm |
Main beam | Height 500mm ,top plate 14mm, bottom plate 16mm, web plate 8mm |
Cross beam | 10 channel steel |
Side beam | 16 channel steel |

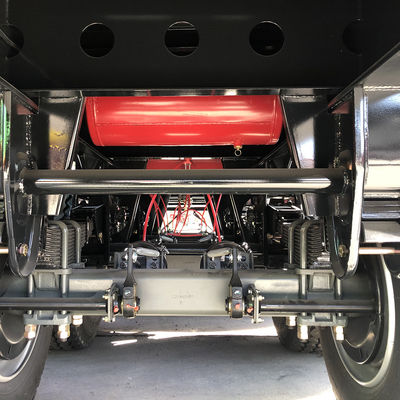

Suspension | Mechanical suspension |
Landing gear | 28T, 19', one side operation |
Spare tire carrier | 1 PC |

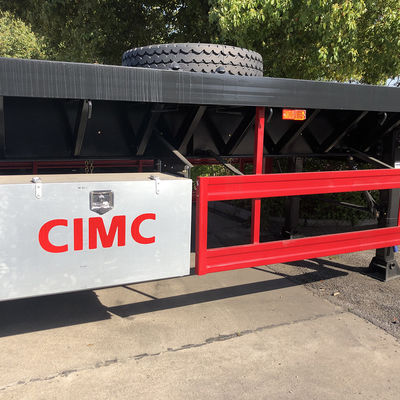

Tool box | 1 PC |
Color | As customer’s requirement |

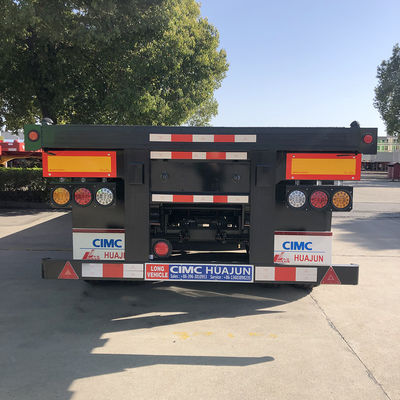

Electrical system | Voltage: 24 Volt. Led Lamp |
Function | Load 1*40', 2*20' or 1*20' container |
Axle | FUWA, BPW, HUAJUN axle, optional |

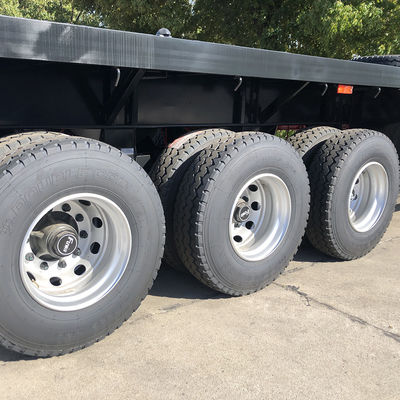

Tire | 12R22.5, 315/80R22.5, 13R22.5, optional |
Packing & Delivery
best packing solution, 3 units packed as one set, to make sure MIn. packing size, ship by roro,
or rear part cut, 2 units packed as one set, ship by 40HQ container
Company Profie
Production Process
with 4 producing lines, including one automatic production line, all materials and famous brand OEM parts,
high quality and fast delivery,
Marketing Campaign
leading brand trailer factory, to make the right trailer for you
