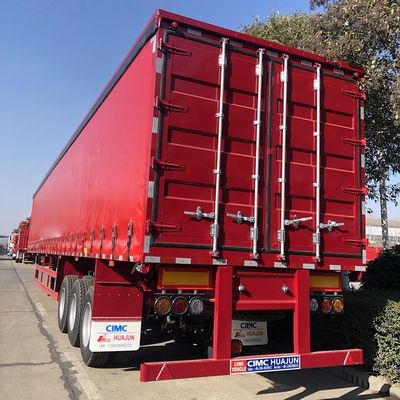

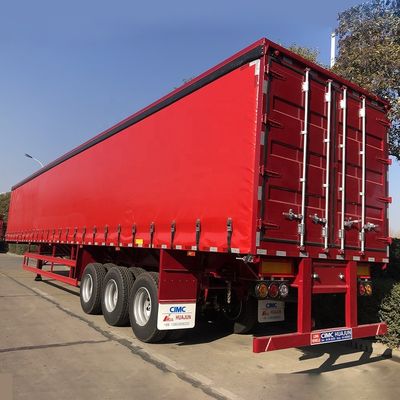

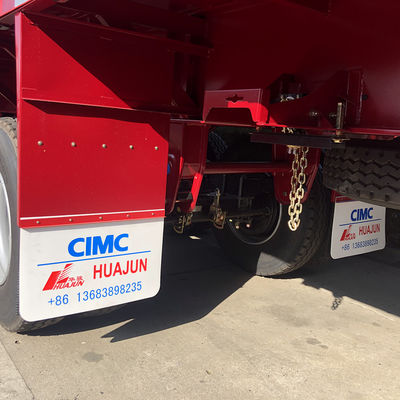

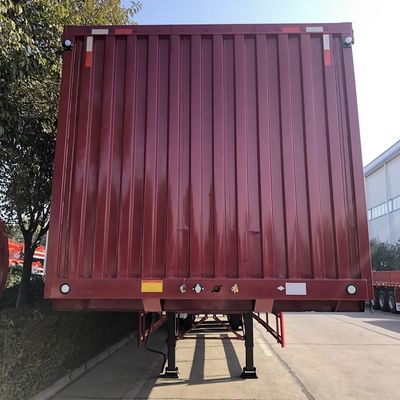

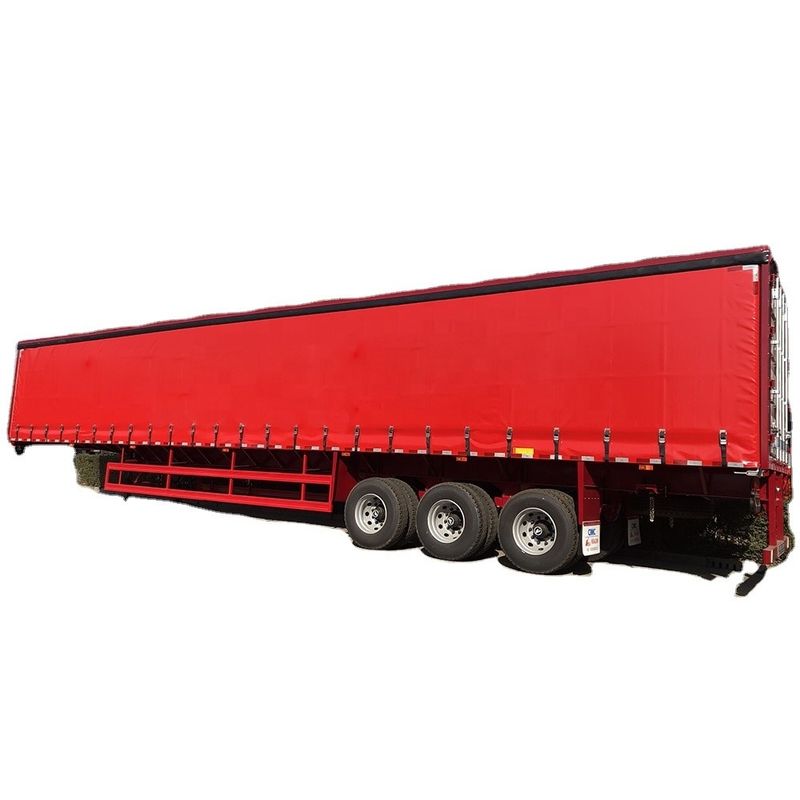

60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport

60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport

Product Details:

Place of Origin: Henan, China
Brand Name: CIMC HUAJUN

Payment & Shipping Terms:

Minimum Order Quantity: 5 units
Price: $11,600.00/units 5-9 units
Packaging Details: trailer cargo transport dry van type box semi trailer with high quality semi-trailer<br>1 unit was packed separately.<br>If you have ability to assemble trailers, we can also send by KD.
Supply Ability: 2000 Unit/Units per Month cargo trailer enclosed
Get Best Price Contact Now

Detail Information
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 13750mm*2550mm*4000mm
Max Payload: 60 Ton Product Name: Van Type Semi Trailer
Axle: Tri-axle Function: Transport Dry Goods
Suspension: Mechanical Suspension Color: Customers Optional
Tire: 10.00R20/ 11.00R20/ 12R22.5 Landing Gear: JOST
King Pin: 2"(50mm)or3.5"(90mm) Brake System: Dual Line Braking System
Application: Cargo Delivery Port: SHANGHAI/QINGDAO/TIANJIN

Product Description

Product Description
Trailer Cargo Transport Dry Van Type Box Semi Trailer
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 0
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 1
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 2
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 3
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 4
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 5
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 6
--We are very strict about choosing raw materials, this is very important for the final products.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
Item
Specification
Product name
3 axles box semi trailer
Size
13750*2550*4000mm.
Chassis
Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.
Axle
20T FUWA brand axle
Tire
12R22.5
Rim
9.0-22.5
Suspension
3 axles CIMC HUAJUN reinforced type
Lead spring
CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness.
Braking system
2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system
24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European
standard, rear front and side reflectors.
Shot blasting
Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns
DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd
FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed.

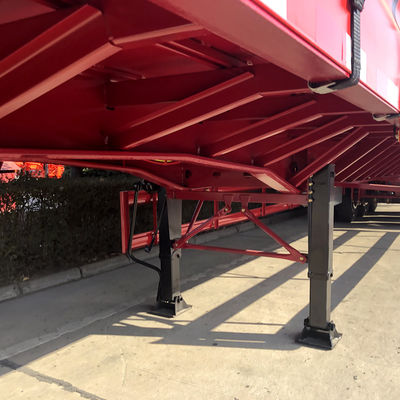

Landing gear
28T, two side operation.
Chamber
Double type
King pin
(2') 50# or (3.5') 90#
Cylinder
Side tipper 120
Spare tire carrier
CIMC HUAJUN standard
Tool box
CIMC HUAJUN standard
Color
According to customers' requirements and RAL color code.
Craft & Equipment
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 7
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 8
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 9
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 10
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 11
1. The production line of steel plate uncoiling and leveling.
2. CNC machining center.
3. 9.5m CNC makeup auto welding machine.
4. U body production line.
5. Automatic production line for smart dump truck with cover.
6. Prephosphating (KTL electrophoresis process).
 7. Pre-wash treatment (KTL electrophoresis process).
8. Sewage treatment system.
 9. Robot welding.
10. Robot spray coating.
11. Powder coating system.
12. 4+1 Laser cutting machine.
Packing&Shipping

Waxed Packing by RO-RO or Vessel

1. One unit was shipped separately；
2. Two or units were packed as one set ;

Shipping by Containers

1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 12
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 13
Customer Comments
Appreciated for each customer's trust. We will never forget the mission and continue to provide reliable trailers.
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 14
Certifications

Our Honor：

--China Well-Known Trademark
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...

Our Certifications:

--CE
--CCC
--ISO
--TUV
--SGS
...
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 15
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 16
Factory History
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 17
Our Market
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as  the leading brand over the world through years' unremitting efforts.
By now, our trailers were shipped to more than 60 countries and area. Such as: The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa-Rica, Ukraine, etc.

More than 90% of our customers cooperated with our factory more than 15 years.
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 18
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 19
60 ton Max Payload Tri-axle Dry Van Type Box Semi Trailer for Cargo Transport 20
