Cereal Transport 60T Flatbed Trailer Train with Mechanical Suspension and Tarpaulin
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | CIMC HUAJUN |
Payment & Shipping Terms:
| Price: | $14,900.00 - $19,900.00/units |
|---|---|
| Packaging Details: | CIMC HUAJUN Factory 3 Axles Flatbed Trailer Train Fence Truck Trailer with Tarpaulin for transport cereals<br>1. Naked or waxed.<br>2. One unit was shipped separately, or Three units were packed together. |
| Supply Ability: | 2000 Unit/Units per Month truck trailer |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 15000*2500*2850mm |
| Max Payload: | 60T | Product Name: | Truck Trailer |
| Function: | Transport Cement, Sugar, Or Coal | Color: | Customers Optional |
| Axle: | 12 Ton BPW Brand | Tire: | 12.00R20 |
| Rim: | 8.50-20 | Capacity: | 60 Tons |
| Tractor: | Kinds | Main Beam: | T700/Q345 Steel |
| Suspension System: | Mechanical Supension | Port: | SHANGHAI/QINGDAO/TIANJIN |
Product Description
Product Description

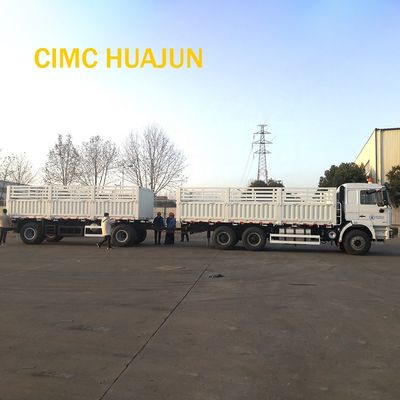

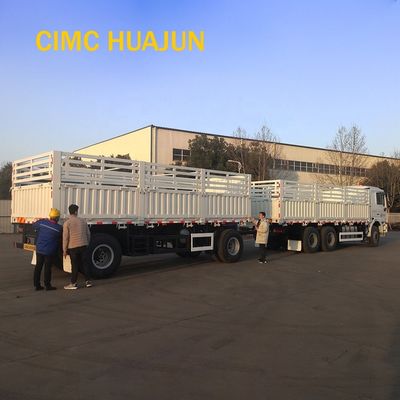

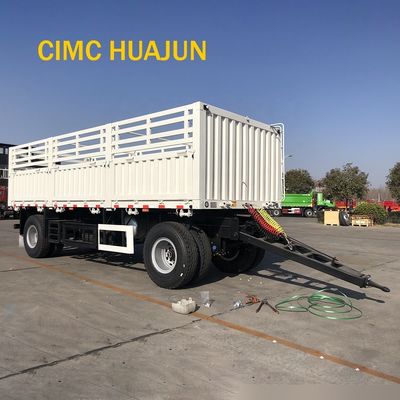

CIMC HUAJUN Factory 3 Axles Flatbed Trailer Train Fence Truck Trailer with Tarpaulin for transport cereals
Working Scenarios

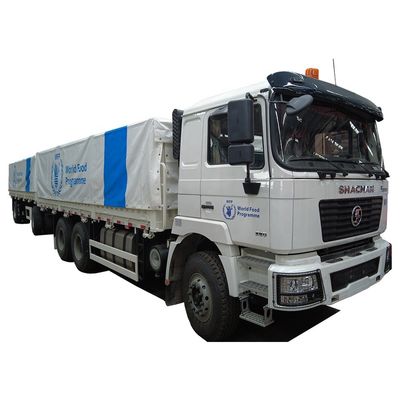

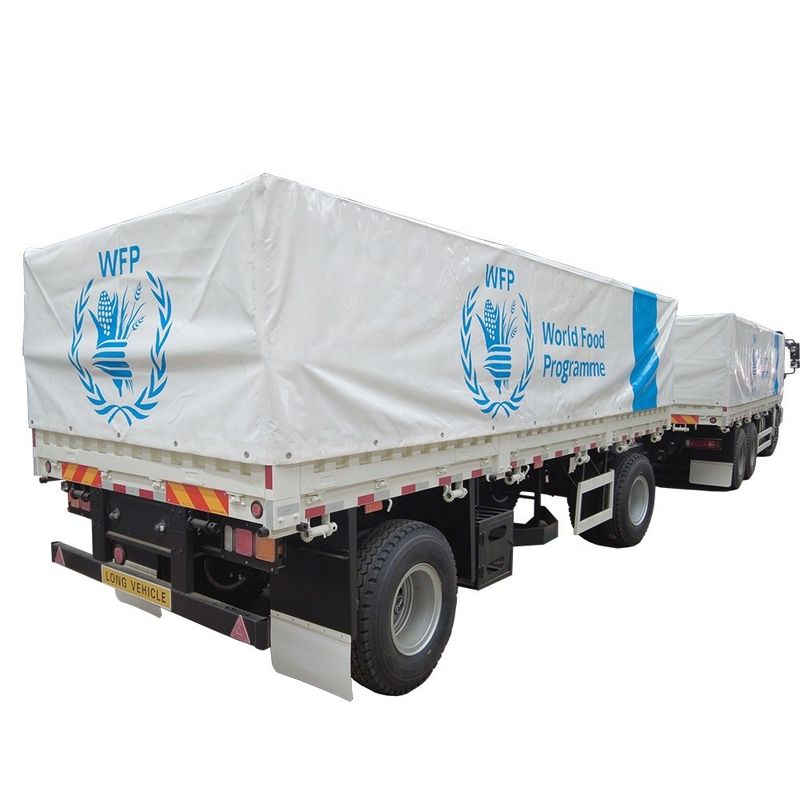

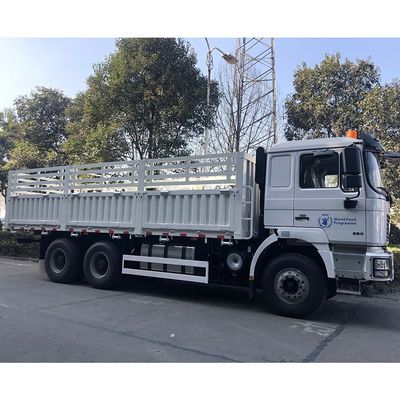

CIMC HUAJUN & SHACMAN & WORLD FOOD PROGRAMME
Type | truck and trailer |
Fence heigth | 600mm |
Axle brand | FUWA brand 13T |
Landing gear | JOST brand, one side operation, 28T. |
Tire | 315/80R22.5 |
Rim | 9.0-22.5 |
Kingpin | 90#, assembly type |
Floor | 5mm thickness |
Side board | 3mm thickness |
Electrical system | 24 volt electrical system.7 pin electrical connector.parking.stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors. |
Painting | Chassis is completely shot blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns.the whole trailer waxed. |
Suspension | CIMC HUAJUN reinforced type with air suspension. |
Relay valve | WABCO |
--We are very strict about choosing raw materials, this is very important for the final products.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
Certifications
Our Honor：
--China Well-Known Trademark
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
Our Certifications:
--CE
--CCC
--ISO
--TUV
--CCC
--ISO
--TUV
--SGS
...
...
Packing&Shipping
CIMC HUAJUN Factory 3 Axles Flatbed Trailer Train Fence Truck Trailer with Tarpaulin for transport cereals
Waxed Packing by RO-RO or Vessel
1. One unit was shipped separately；
2. Two or units were packed as one set ;
Shipping by Containers
1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
Oversea Sales Team
Oversea Engineer Team
Our Customers
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as the leading brand over the world through years' unremitting efforts.
By now, our trailers were shipped to more than 60 countries and area. Such as: The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory more than 15 years.
Write to customers:
Appreciated for each customer's trust. We will never forget the mission and continue to provide reliable trailers.
Company Introduction
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
Our Supplier
Through the cooperation with famous brand suppliers, not only to ensure the quality of products, but also to sure the timeliness and reliability of after-sales service.
Want to Know more details about this product
