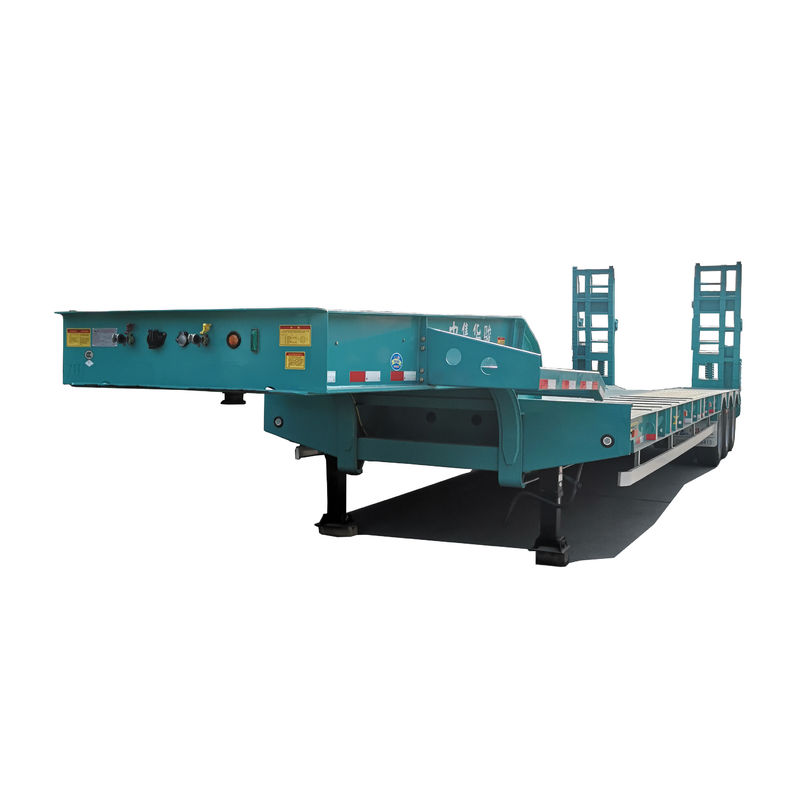

FUWA Axle Lowbed Semi Trailer The Perfect Solution for Heavy Equipment Transport Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | CIMC |
Payment & Shipping Terms:
| Price: | $9,000.00/units 1-4 units |
|---|---|
| Packaging Details: | Cheap Lowbed Semi Trailer <br>1. Naked or waxed.<br>2. One unit was shipped separately, or Three units were packed together. |
| Supply Ability: | 2000 Unit/Units per Month cargo trailer enclosed |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 17500mm*3000mm |
| Max Payload: | 70 Ton | Product Name: | Low Bed Trailer |
| Axle: | FUWA | Suspension: | Mechanical Suspension Air Suspension |
| Function: | Transport Heavy Duty Equipment | Tire: | 12R22.5 |
| Landing Gear: | JOST Brand Two-speed | King Pin: | 2"(50mm)or3.5"(90mm) JOST |
| Color: | Custom's Requirement | Brake System: | ABS Optional |
| Application: | Long Distance Transportation | Port: | SHANGHAI/QINGDAO/TIANJIN |
Product Description
Product Description
Cheap Lowbed Semi Trailer
Main features for this Lowbed Semi Trailer:
1. With stand columns on the left and right sides to protect operation staff and cargo;
2. Customers can choose tarpaulin-covered;
3. Use it mostly for the transport of construction machinery;
4. Axles can be selected by FUWA or BPW these famous brand;

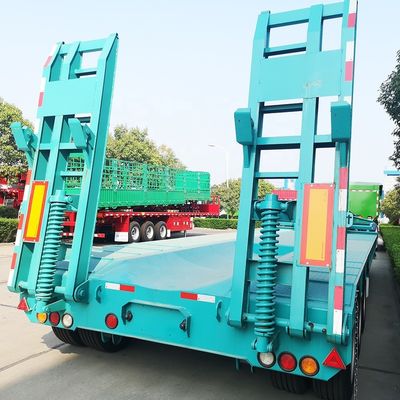

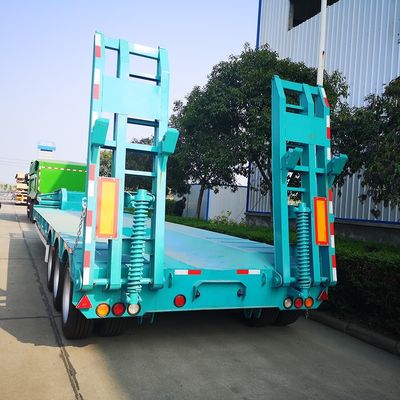

5. For ramp, customers can choose mechanical or hydraulic type;
6. As kingpin, welding or assembly type both are acceptable;
Applicable environment for Lowbed Semi Trailer:
Lowbed Semi Trailers are usually used to transport large cargo, large -piece tanks, various steel, power station equipment machines, heavy vehicles, rail vehicles, various machinery and equipment, highway construction equipment, mining machines, forestry machines, agricultural machines, and agricultural machinery ( Such as excavators, bulldozers, loaders, paving machines, cranes, etc.) and other heavy loaded goods. The lower the center of gravity, the better the stability and safety, the stronger the ability to transport ultra -high goods and the ability to pass through the head of the head.
Configuration
Item | Specification |
Body Sheet | Floor thickness: 4mm, checkered plate; Body material: high tensile steel. |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes. |
Suspension | 3 axles CIMC HUAJUN reinforced type |
Lead spring | CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness. |
Braking system | 2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters. |
Electrical system | 24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors. |
Landing gear | 28T, two side operation. |
Chamber | Double type |
King pin | (2') 50# or (3.5') 90# |
Ramp | Mechanical or Hydraulic system |
Spare tire carrier | CIMC HUAJUN standard |
Tool box | CIMC HUAJUN standard |
Color | According to customers' requirements and RAL color code. |
--We are very strict about choosing raw materials, this is very important for the final products.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
Packing&Shipping
Waxed Packing by RO-RO or Vessel
1. One unit was shipped separately；
2. Two or units were packed as one set ;
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
Our Customers
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as the leading brand over the world through years' unremitting efforts.
By now, our trailers were shipped to more than 60 countries and area. Such as: The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory more than 15 years.
Factory History
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
