Transport 20/40 ft Containers with 40 ton Max Payload Skeletal Container Semi Trailer
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | CIMC HUAJUN, CHINA CIMC |
Payment & Shipping Terms:
| Price: | $7,600.00/units 1-14 units |
|---|---|
| Packaging Details: | Transport 20/40 ft Container Skeletal Container Semi Trailer <br>1. Naked or waxed.<br>2. One unit was shipped separately, or Three units were packed together. |
| Supply Ability: | 2000 Unit/Units per Month |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 12400mm*2500*1580mm |
| Max Payload: | 40 Ton | Product Name: | Container Transport Semi-trailer |
| Axle: | Fuwa/BPW/CIMC | Suspension: | Mechanical Suspension Air Suspension |
| Function: | Transport 20ft 40ft Container | Tire: | 12R22.5 |
| Landing Gear: | JOST Brand Two-speed | King Pin: | 2"(50mm)or3.5"(90mm) JOST |
| Color: | Customers Optional | Port: | SHANGHAI/QINGDAO/TIANJIN |
Product Description
Product Description

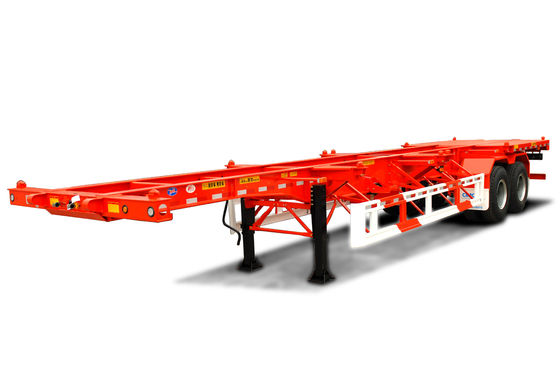

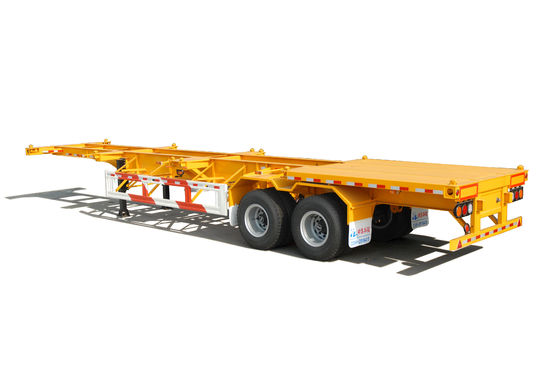

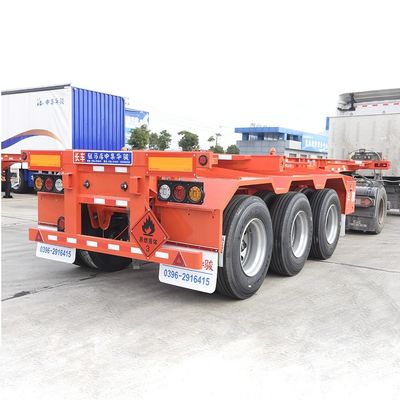

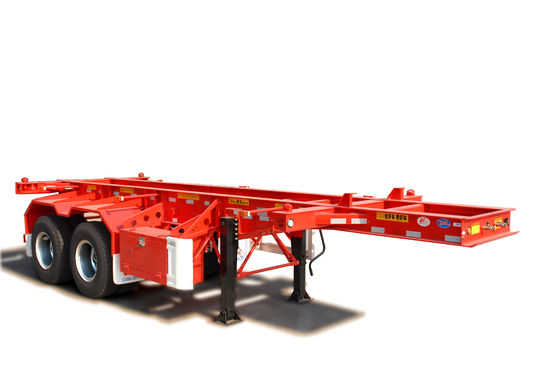

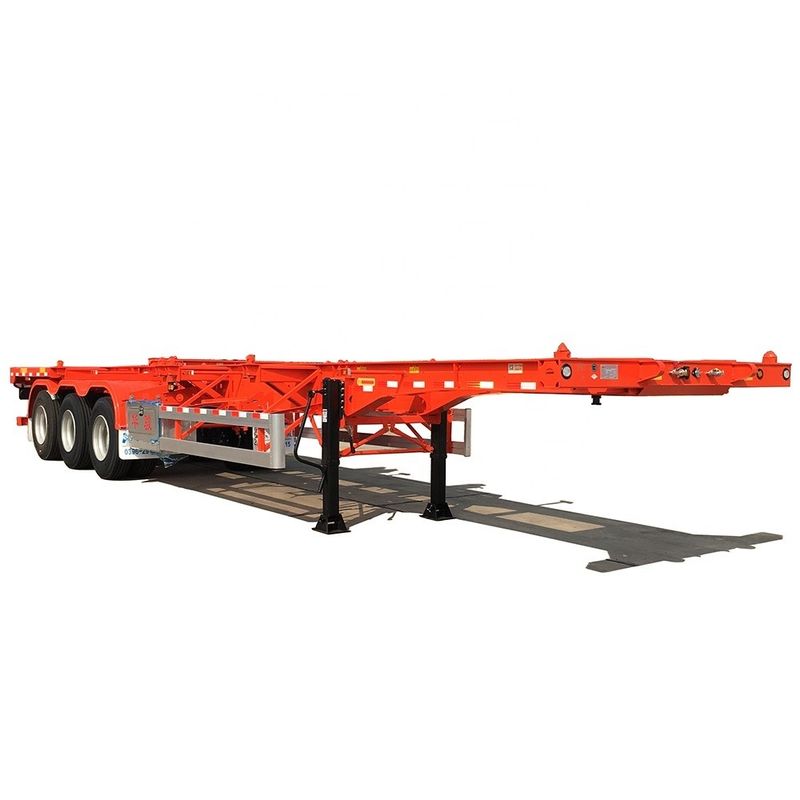

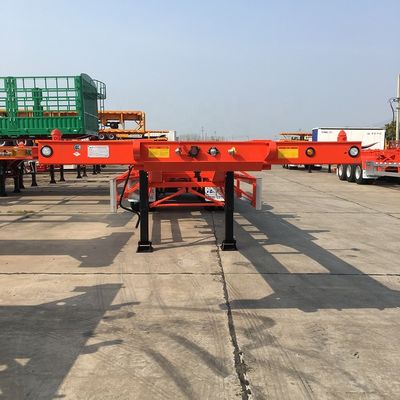

Transport 20/40 ft Container Skeletal Container Semi Trailer
Item | Details |
Size | 12400mm length*2500mm width, details are according to the drawing. |
Axle | 13T axle, braking pad width 220mm, ABS system is an option. |
Tire | 12R22.5 |
Leaf spring | 10 pieces, 13mm thickness, 90mm width. |
Suspension | CIMC HUAJUN standard type |
Twist lock | 12 set; can load 1*40', 2* 20' or 1*20' containers. |
Braking system | 2 lines air braking system with air tank, emergency relay valve, braking chambers and mechanical slack adjusters. |
Electrical system | 24 volt electrical system. 7 pin electrical connector. parking, stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear, front and side reflectors. |
Relay valve | WABCO brand, customers can also choose domestic brand. |
Landing gear | One side operation 28T |
Kingpin 3.5'' | 90# JOST bolted type |
Chamber | T30/30 on front and middle two axles, T30 on rear axle. |
Side beam | 16# channel steel |
Floor | 3mm checkered plate |
Cross beam | 80*40 square tube |
Tool box | CIMC HUAJUN factory standard |
Shot blasting and paint | Chassis is completely shot blasting to SA 2.5 grade, and painted with final layer of international Zinc Epoxy primer (30 Microns DEF), second layer of international high built polyurethane under coat (40 micros DFT). Third and forth layers international alkyd finish top coat. total 80-100 microns. |
Spare tire carrier | Factory standard |
Certifications
Our Honor：
--China Well-Known Trademark
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
Our Certifications:
--CE
--CCC
--ISO
--TUV
--CCC
--ISO
--TUV
--SGS
...
...
Packing&Shipping
Transport 20/40 ft Container Skeletal Container Semi Trailer
Waxed Packing by RO-RO or Vessel
1. One unit was shipped separately；
2. Two or units were packed as one set ;
Shipping by Containers
1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
Our Customers
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as the leading brand over the world through years' unremitting efforts.
By now, our trailers were shipped to more than 60 countries and area. Such as: The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory more than 15 years.
Write to customers:
Appreciated for each customer's trust. We will never forget the mission and continue to provide reliable trailers.
Our Supplier
Through the cooperation with famous brand suppliers, not only to ensure the quality of products, but also to sure the timeliness and reliability of after-sales service.
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
Oversea Sales Team
Oversea Engineer Team
Company Introduction
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
