Transport Animals with Ease and Safety using Our Steel Enclosed Fence Cargo Trailer
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | CIMC HUAJUN |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $12,400.00/units 1-8 units |
|---|---|
| Packaging Details: | popular export cargo trailer enclosed fence for transport animal<br>1. Naked or waxed.<br>2. One unit was shipped separately, or Three units were packed together. |
| Supply Ability: | 900 Unit/Units per Month cargo trailer enclosed |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12560*2610*2970mm |
| Max Payload: | 50T | Product Name: | Popular Export Cargo Trailer Enclosed Fence For Transport Animal |
| Function: | Transport Cement, Sugar, Or Coal | Color: | Customers Optional |
| Axle: | 12 Ton BPW Brand | Tire: | 12.00R20 |
| Rim: | 8.50-20 | Capacity: | 50 Ton |
| Tractor: | Kinds | Main Beam: | T700/Q345 Steel |
| Suspension System: | Mechanical Supension | OE NO.: | HJGMCK20059 |
| Port: | SHANGHAI/QINGDAO/TIANJIN | ||
Product Description
Product Description
4 "BIGs" in China
BIG 1: The biggest trailer brand in China.----CIMC HUAJUN famous brand.
BIG 2: The biggest trailer factory in China.-----We own 5 workshops for each type vehicle.
BIG 3: The biggest history in trailer manufacturing.----Since 1952, over 60 years' experience.
BIG 4: The biggest sales volume of trailer in China.----By now, more than 400,000 units trailer were used all of the world.

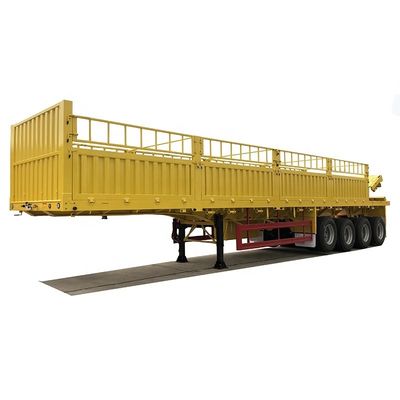

popular export cargo trailer enclosed fence for transport animal
Assembly shipping Side wall with robot welding

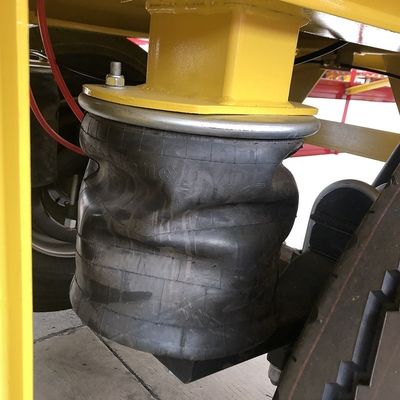

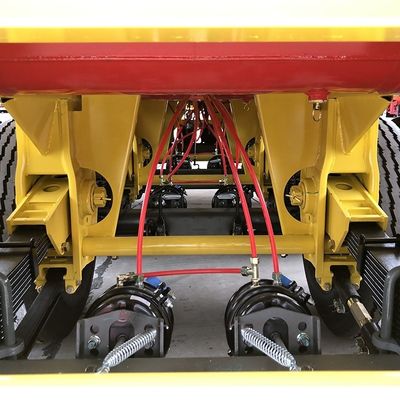

FUWA brand axle air suspension
Type | Semi- trailer |
Fence heigth | (800+400)mm |
Axle brand | FUWA brand 13T |
Landing gear | JOST brand, one side operation, 28T. |
Tire | 315/80R22.5 |
Rim | 9.0-22.5 |
Kingpin | 90#, assembly type |
Floor | 3mm thickness, checkered plate. |
Electrical system | 24 volt electrical system.7 pin electrical connector.parking.stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors. |
Painting | Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns.the whole trailer waxed. |
Suspension | CIMC HUAJUN reinforced type with air suspension. |
Relay valve | WABCO |
Production Process
Craft & Equipment
Equipment 1. The production line of steel plate uncoiling and leveling; |
Equipment 2. CNC machining center; |
Equipment 3. 9.5m CNC makeup auto welding machine; |
Equipment 4. U body production line; |
Equipment 5. Automatic production line for smart dump truck with cover; |
Equipment 6. Prephosphating (KTL electrophoresis process); |
Equipment 7. Pre-wash treatment (KTL electrophoresis process); |
Equipment 8. Sewage treatment system; |
Equipment 9. Robot welding; |
Equipment 10. Robot spray coating; |
Equipment 11. Powder coating system; |
Equipment 12. 4+1 Laser cutting machine; |
Packing&Shipping
popular export cargo trailer enclosed fence for transport animal
1. One unit was shipped separately or Three units were packed together. 2. Naked or waxed both are acceptable.
Company Introduction
China International Marine Containers Co., Ltd, short for CIMC, established in Shenzhen in Jan., 1980, listed on Shenzhen Stock Exchange in 1994, at present the main shareholder are China Merchants Group and COSCO Group. CIMC group are the world's leading logistic equipment and energy equipment supplier.
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, own 22 production bases over the world, producing capacity for all kinds of special vehicles and trailers are more than 0.2 million, come to the world leadership position.
CIMC HUAJUN covers an area of 0.8 million square meters, total assets of RMB 1.6 million, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 50,000.00 units.
Our service & Strength
ZHUMADIAN CIMC HUAJUN upholds the spirit of "constantly striving to challenge the limit", as well as the culture of "trying the best in search of excellence", takes the mission to provide the world class transport equipment and service. In the leading of 3rd generation special vehicle technology and under the guidance of advanced management, CIMC HUAJUN people are making great efforts to pull all your requirements and dream into practice.
Why Choose Us?
Profession | More than 60 years experience in vehicle manufacture, consistent pursuit of quality, bring us famous brand in Chinese vehicle undustry. |
Actual strength | With annual output of 50000 units trailer, top 500 in Chinese mechanical industry, top 100 in Chinese automobile industry, witness our great strength. |
R & D | Set up a post-doctoral research station, take part in drawing up national and industrial standards, leading in new trend of technical design, raw material utilization, and equipment & craft, developing on innovation, always been imitated, but never been exceeded. |
Service | Create CIMC HUAJUN unique heart-pleasing service, offer the trailored solution for the customer, and make sure the quality and create more value for customer. |
Adaptability | Always developed under the concept of safety, efficient, pro-environment, intelligent adaptability. etc. widely master kinds of road condition, kinds of loading resources, kinds of transport environment at home and abroad, reasonably optimize the structure, offer quality and tailored products for professional customers, really embody our high quality. |
Want to Know more details about this product
