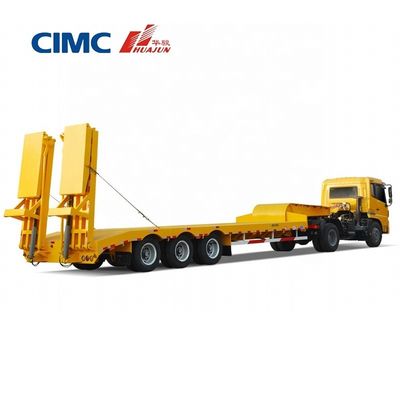

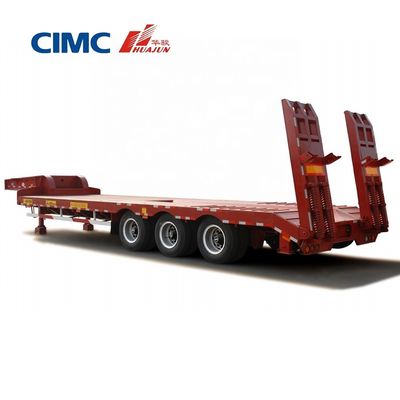

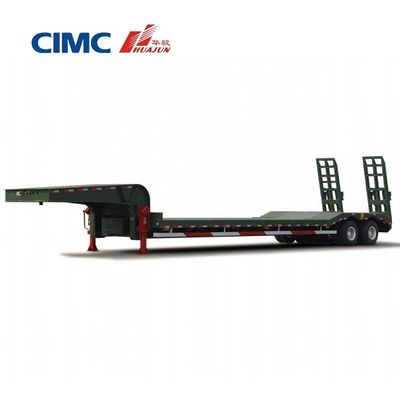

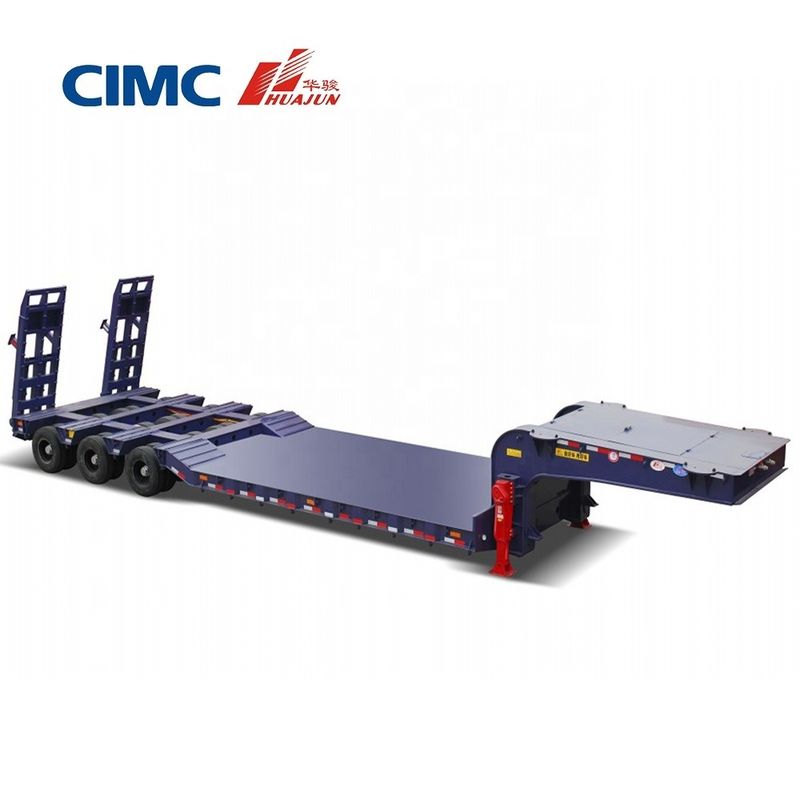

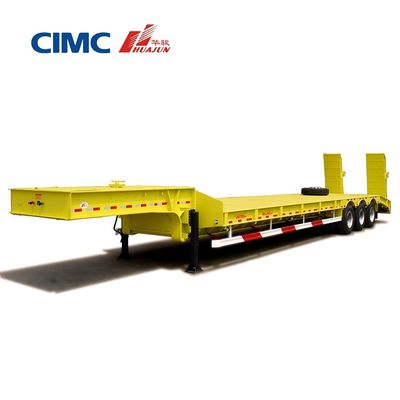

CIMC HUAJUN 60ton Lowboy Trailer with Mechanical Suspension and 17500*3000*1250mm Size
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | CIMC HUAJUN |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $18,500.00 - $28,350.00/units |
|---|---|
| Packaging Details: | CIMC HUAJUN reliable quality gooseneck low bed 60ton lowboy trailer for sale<br>1. Naked or waxed.<br>2. One unit was shipped separately.<br>3. Via RO-RO or Bulk. |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 17500*3000*1250mm |
| Max Payload: | 60T | Product Name: | Reliable Quality Gooseneck Low Bed 60ton Lowboy Trailer For Sale |
| Function: | Transport Heavy Equipment | Color: | Customers Optional |
| Axle: | 16 Ton, FUWA Brand | Tire: | 315/80R22.5 |
| Rim: | 9.0*22.5 | Capacity: | 60 Tons |
| Tractor: | Kinds | Main Beam: | T700/Q345 Steel |
| Suspension System: | Mechanical Supension | OE NO.: | HJGMCK20094 |
| Port: | SHANGHAI/QINGDAO/TIANJIN | ||
Product Description
CIMC HUAJUN reliable quality gooseneck low bed 60ton lowboy trailer for sale
Item | Specification |
Product name | Lowboy trailer |
Size | 17500*3000*1250mm. |
Body Sheet | Floor thickness: 4mm, checkered plate; Body material: high tensile steel. |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes. |
Axle | 16T FUWA brand axle |
Tire | 315/80R22.5 |
Rim | 9.0-22.5 |
Suspension | 3 axles CIMC HUAJUN reinforced type |
Lead spring | CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness. |
Braking system | 2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters. |
Electrical system | 24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors. |
Shot blasting | Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed. |
Landing gear | 28T, two side operation. |
Chamber | Double type |
King pin | (2') 50# or (3.5') 90# |
Ramp | Mechanical or Hydraulic type can be both acceptable by customers. |
Spare tire carrier | CIMC HUAJUN standard |
Tool box | CIMC HUAJUN standard |
Color | According to customers' requirements and RAL color code. |
Certifications
Our Honor：
--China Well-Known Trademark
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
Our Certifications:
--CE
--CCC
--ISO
--TUV
--CCC
--ISO
--TUV
--SGS
...
...
Packing&Shipping
CIMC HUAJUN reliable quality gooseneck low bed 60ton lowboy trailer for sale
Waxed Packing by RO-RO or Vessel
1. One unit was shipped separately；
2. Two or units were packed as one set ;
Shipping by Containers
1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
Our Customers
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as the leading brand over the world through years' unremitting efforts.
By now, our trailers were shipped to more than 60 countries and area. Such as: The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory more than 15 years.
Our Supplier
Through the cooperation with famous brand suppliers, not only to ensure the quality of products, but also to sure the timeliness and reliability of after-sales service.
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
Oversea Sales Team
Oversea Engineer Team
Factory History
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
Want to Know more details about this product
